Product Introduction

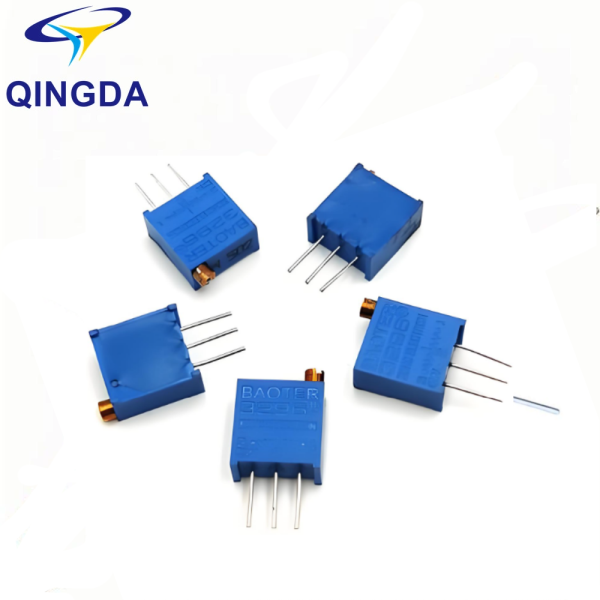

3296W potentiometer is a popular multi-turn sealed trimming potentiometer, also known as multi-turn preset variable resistor. With 25 turns adjustment, it delivers high precision resistance tuning for electronic circuits.
Qingda provides full series 3296W multi-turn trimmer potentiometers. Rated power 0.5W, resistance covers 10Ω to 10MΩ. The sealed plastic housing protects internal resistive element from dust and moisture, improving long-term stability. Through-hole DIP mounting is convenient for PCB soldering. It can be adjusted precisely by screwdriver to calibrate circuit parameters.
3296W multi-turn potentiometer features small size, reliable performance and low tolerance. All products meet RoHS lead-free standard, ideal for export electronic products.
Key Features
- 25-turn precise adjustment, high resolution
- Sealed housing, dustproof & moisture resistant
- 0.5W rated power, resistance range:10Ω ~10MΩ
- DIP through hole mounting for PCB
- Easy screwdriver fine tuning
- Stable resistance, low temperature drift
- RoHS & Lead-free compliant
Typical Applications
Instrumentation, switching power supplies, industrial control boards, communication equipment, chargers, medical electronics, automotive electronics and laboratory test modules.
