Product Introduction

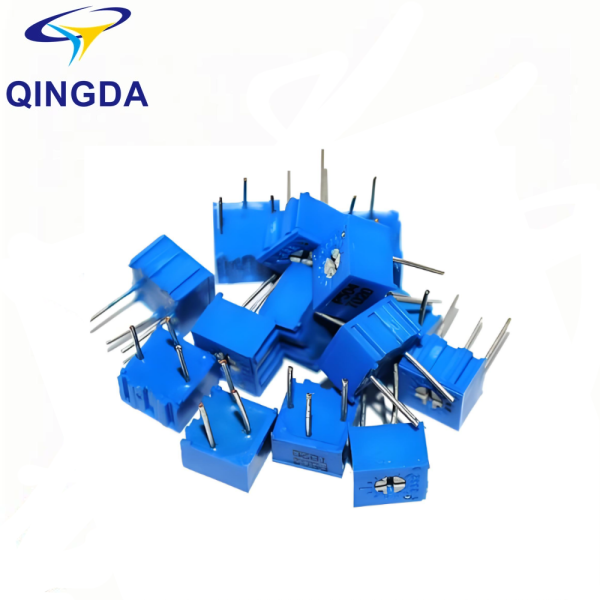

3362P potentiometer is a classic single‑turn top‑adjust cermet trimming potentiometer, widely adopted for circuit parameter trimming on PCBs. Featuring square miniature housing and through‑hole DIP pins, it adopts cermet (glass‑glaze) resistive element to deliver stable resistance, low temperature drift and reliable adjustment performance.
Qingda full‑range 3362P preset potentiometer reaches rated power 0.25W, resistance covers 10Ω‑5MΩ. It adopts top‑side screwdriver adjustment design, easy for calibration during production and after‑sales maintenance. Compact dimension saves PCB space for dense layout electronic modules.
With good heat resistance and long service life, 3362P cermet trimmer meets general industrial and consumer electronic requirements. All Qingda 3362P potentiometers comply with RoHS lead‑free standard for global export markets.
Key Features
- Single‑turn cermet / glass‑glaze resistive element
- Top‑adjust square compact housing, through‑hole DIP mounting
- Rated power: 0.25W, resistance range: 10Ω ~ 5MΩ
- Convenient screwdriver fine‑tuning from top side
- Low temperature drift, stable resistance performance
- Good heat‑resistant capability, long operating life
- RoHS & Lead‑free compliant
Typical Applications
Precision instruments, switching power supplies, sensor modules, communication equipment, household appliances, industrial control boards, test & measuring devices, charging modules.
