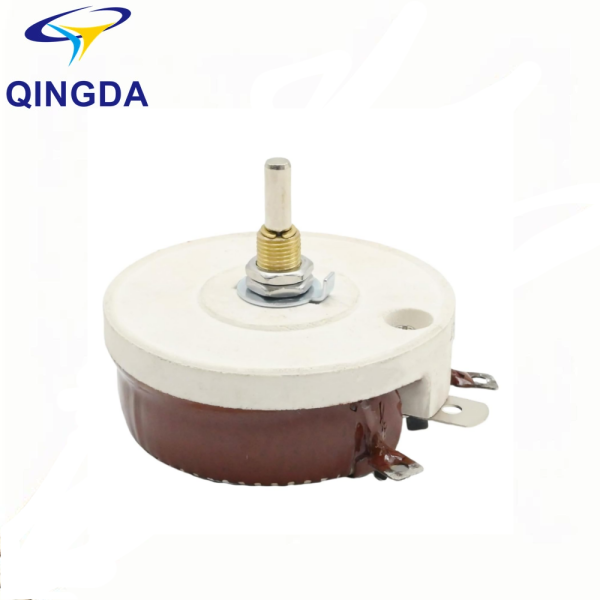

BC1 Disc Wirewound Rheostat
BC1 disc wirewound rheostat is a kind of high-power adjustable wirewound resistor, also known as disk variable rheostat. It adopts ceramic disc substrate and high-temperature alloy resistance wire winding structure, featuring large power capacity, low temperature drift, stable resistance value and easy adjustment.
The sliding brush design allows continuous resistance adjustment, which can realize flexible current and voltage regulation. The all-metal frame ensures good heat dissipation and mechanical stability, suitable for long-time working under heavy load conditions.
Key Features
- High power rating, compact disc structure
- Continuous adjustable resistance, reliable sliding contact
- Excellent heat dissipation, strong overload resistance
- Stable resistance under high temperature
- Custom power, resistance and terminal options available
Applications
Industrial load testing, motor speed regulation, power cabinet testing, power supply aging test, equipment current limiting, laboratory power adjustment.
