Product Introduction

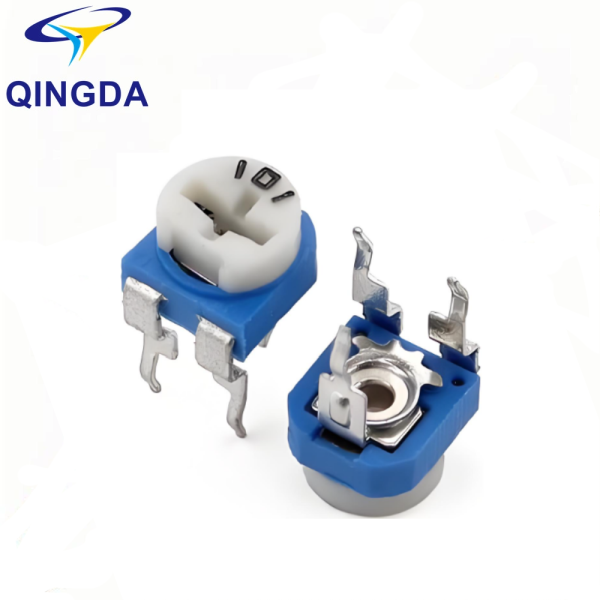

Blue‑White Trimming Potentiometer (also known as RM065, RM063 preset adjustable resistor) is a carbon‑film trimmer potentiometer featured with classic blue‑white plastic housing. It is widely used for circuit calibration, parameter fine‑tuning inside electronic equipment.
Qingda provides full‑series blue‑white trimming potentiometers, including horizontal RM065 and vertical RM063 versions. Rated power 0.1W, covering wide resistance range from 10Ω up to 2MΩ. Compact through‑hole DIP structure fits PCB assembly, easy for manual adjustment during production or after‑sales maintenance.
These preset potentiometers deliver stable carbon‑film performance, good solderability and competitive cost‑performance. All products comply with RoHS lead‑free requirements for global electronic market.
Key Features
- Classic blue‑white housing, RM065 horizontal / RM063 vertical options
-
- Carbon film resistive element, rated power 0.1W
-
- Broad resistance range: 10Ω ~ 2MΩ
-
- Compact DIP through‑hole mounting
-
- Simple screwdriver fine‑tuning for circuit calibration
-
- Stable performance, cost‑effective
-
- RoHS & Lead‑free compliant
Typical Applications
Power supply units, household appliances, audio equipment, instrument panels, industrial control boards, charging modules, consumer electronic products.
