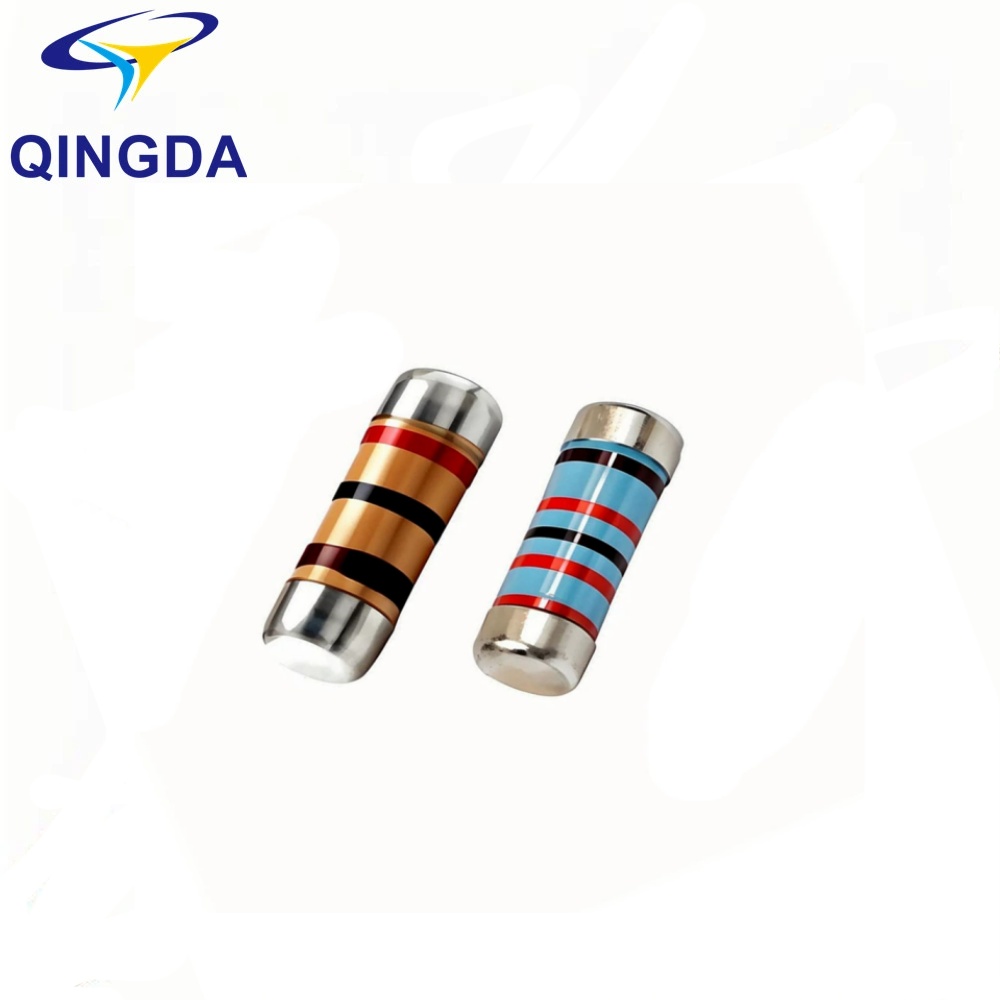

Carbon Film MELF Resistor
Carbon film MELF resistor, also known as carbon film wafer resistor (RDM series), is cylindrical lead‑free surface‑mount component. It adopts carbon resistive film deposited on ceramic core with metal end‑cap electrodes, combining the advantages of traditional axial carbon‑film resistor and SMD automatic assembly technology.
Manufactured by Guangdong Qingda Electronic Technology Co., Ltd., this series delivers outstanding heat dissipation and strong anti‑vibration performance compared with conventional flat chip resistors. With good pulse‑withstand property and competitive cost, it is widely adopted in mass‑production general‑purpose electronic equipment. The protective outer coating provides reliable protection against humidity and mechanical damage.
Key Features
- Cylindrical MELF wafer package, fully compatible with SMT automatic mounting
- Carbon film resistive layer, cost‑effective for mass production
- Superior heat dissipation, better power handling than flat chip resistors
- High mechanical strength, excellent vibration & thermal shock resistance
- Good pulse and surge withstand capability
- Excellent solderability of metal end‑cap terminals
- Wide resistance range, multiple power ratings available
- Conformal protective coating for moisture and environmental protection
- Custom resistance value, tolerance and packing options supported
Applications
Household appliances, consumer electronic products, power supply modules, industrial control boards, lighting equipment, communication devices, automotive auxiliary circuits, office automation equipment.
