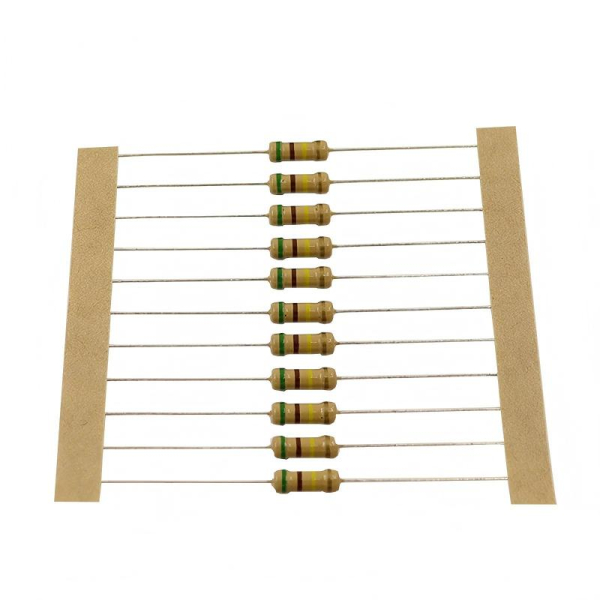

Carbon Film Resistor
Carbon film resistor is one type of through-hole fixed resistors, which is manufactured by depositing a thin carbon film on a high-grade ceramic substrate. The resistance value can be precisely adjusted by trimming the carbon film spiral groove.
Key Features
- Low noise & stable resistance performance
- Wide resistance range available
- Low cost, suitable for general-purpose circuit applications
- Good heat dissipation, compact axial lead package
- Reliable performance under normal working temperature
Applications
Carbon film resistors are commonly used in consumer electronics, household appliances, power adapters, communication equipment, instrumentation and other low to medium power electronic circuits.
Product Specification
- Resistor Type: Axial Lead Carbon Film Resistor
- Tolerance: ±5% (standard), ±2% optional
- Power Rating: 1/8W, 1/4W, 1/2W, 1W, 2W
- Resistance Range: 1Ω ~ 10MΩ
- Operating Temperature: -55℃ ~ +155℃
Guangdong Qingda Electronics is a professional manufacturer and supplier of carbon film resistors in China. We support bulk orders and custom requirements. Contact us for datasheet and quotation.
