Cylindrical RF Microwave Resistor
Manufacturer: Guangdong Qingda Electronic Technology Co., Ltd
Product Overview

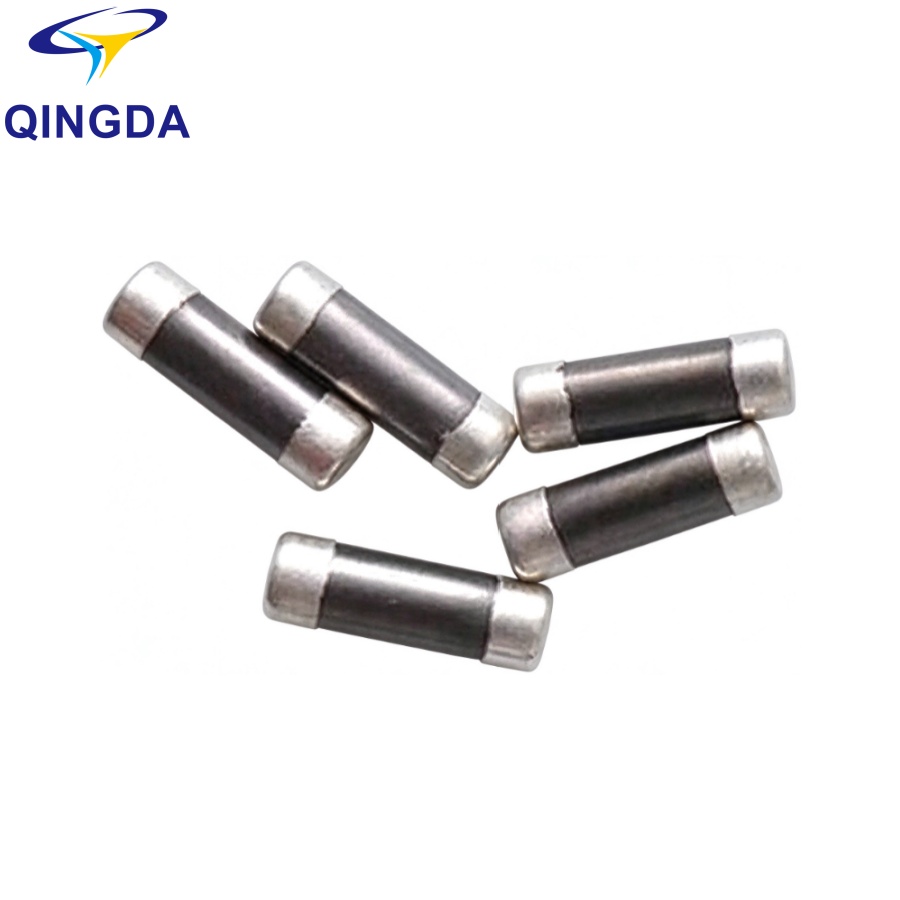

Cylindrical (rod‑type) RF microwave resistor adopts high‑purity alumina ceramic cylindrical substrate with precision thin‑film resistive layer, specially optimized for radio frequency and microwave circuits. The compact rod‑shape structure greatly reduces parasitic inductance and parasitic capacitance, delivering stable impedance characteristics across broad GHz frequency bandwidth. Compared with traditional wire‑wound and general axial resistors, it achieves lower signal reflection and flat frequency response, ideal for high‑frequency signal processing scenarios.
Guangdong Qingda Electronics provides complete series of cylindrical RF microwave resistors, covering multiple power grades and resistance values. Support standard bulk order as well as customized development for special frequency, impedance and dimension requirements. All products comply with RoHS environmental standards.
Key Features
- Cylindrical rod‑shaped ceramic substrate, ultra‑low parasitic inductance & capacitance
- Low VSWR, excellent impedance stability over wide frequency range up to GHz band
- Non‑inductive structure, minimal high‑frequency signal distortion
- Compact axial through‑hole package, easy assembly and installation
- Multiple resistance tolerances optional: ±1%, ±2%, ±5%
- Good thermal stability, reliable performance under continuous RF load
- Wide operating temperature: ‑55℃ ~ +155℃
- RoHS compliant, custom specifications available for special projects
Applications
Cylindrical RF microwave resistors are widely used for RF impedance matching, signal attenuation, microwave termination loads, wireless communication modules, radio‑frequency amplifiers, test & measuring instruments, radar devices, broadcast transmission equipment and industrial high‑frequency electronic systems.

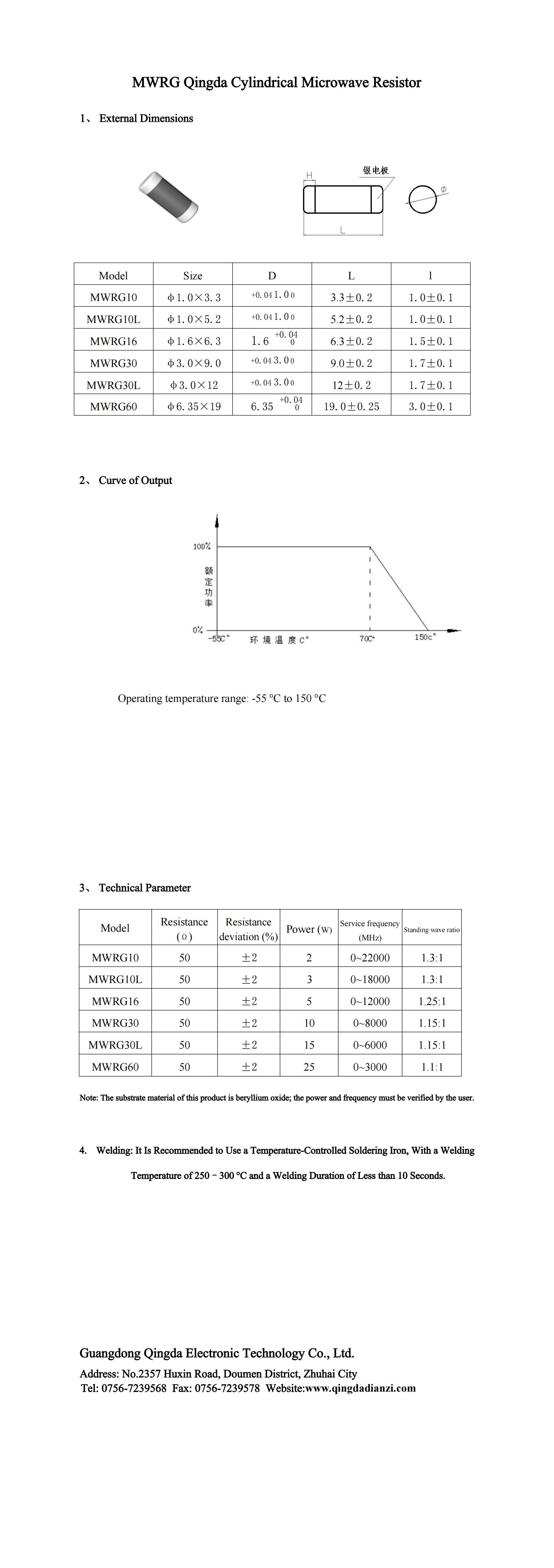

Typical Specifications
- Product Type: Cylindrical / Rod‑Type RF Microwave Resistor
- Package: Axial cylindrical rod
- Power Rating: 1W‑30W
- Resistance Range: 10Ω‑10kΩ
- Tolerance: ±1%, ±2%, ±5%
- Operating Frequency: DC to several GHz
- Operating Temperature: -55℃ ~ +155℃
- Compliance: RoHS
Guangdong Qingda Electronic Technology Co., Ltd specializes in RF microwave resistors, high‑voltage glass glaze resistors, cement resistors, solid‑carbon resistors and power resistors. Strict quality control guarantees consistent high‑frequency performance. Welcome to contact us for datasheets, samples and bulk quotation.
