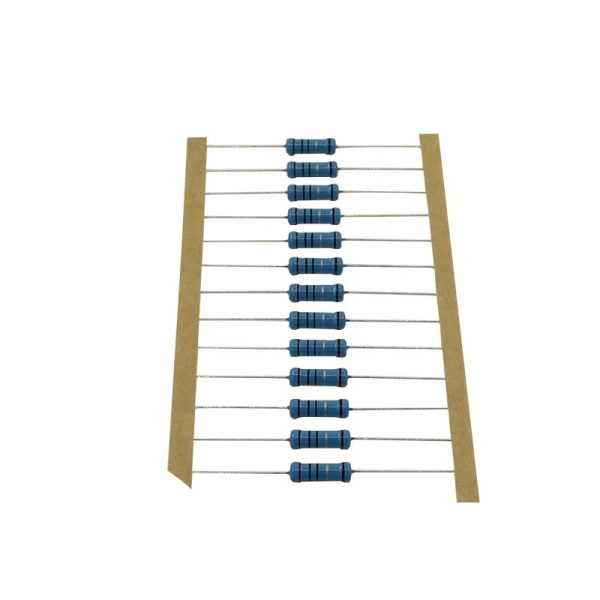

Metal Film Resistor
Metal film resistor is a high-precision axial lead fixed resistor. It is produced by depositing a thin metal alloy film on ceramic rod substrate. The resistance value is adjusted by spiral grooving technology to achieve precise resistance.
Key Features
- High precision, tight tolerance: ±1%, ±0.5%, ±0.25%, ±0.1% optional
- Low temperature coefficient (low TCR), small resistance drift
- Extremely low noise, stable electrical performance
- Compact axial lead package
- Good anti-oxidation property and long service life
Applications
Metal film resistors are widely used in precision measuring instruments, communication equipment, medical electronics, industrial control circuits, audio devices and high-end consumer electronics.
Product Specifications
- Resistor Type: Axial Lead Metal Film Resistor
- Tolerance: ±1% (standard), ±0.5%, ±0.25%, ±0.1% available
- Power Rating: 1/8W, 1/4W, 1/2W, 1W, 2W
- Resistance Range: 1Ω ~ 10MΩ
- Operating Temperature: -55℃ ~ +155℃
Guangdong Qingda Electronics is a professional manufacturer and supplier of metal film resistors. We support bulk wholesale and customized specifications. Please contact us for datasheet and quotation.
