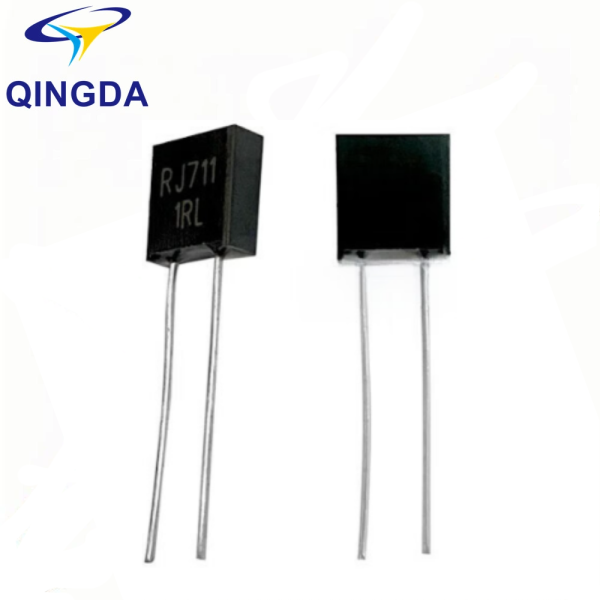

RJ711 Metal Foil Resistor
RJ711 metal foil resistor is high‑performance through‑hole precision resistor developed and manufactured by Guangdong Qingda Electronic Technology Co., Ltd. Adopting advanced metal‑foil etching process, it achieves ultra‑tight resistance tolerance, extremely low temperature coefficient and near‑non‑inductive electrical performanceMade-in-Ch....
With fast frequency response, low thermal EMF and outstanding anti‑aging performance, RJ711 maintains stable resistance value under wide temperature range and long‑time load conditions. This series covers multiple power ratings from 0.25W to 1.5W, wide resistance range and multi‑grade accuracy, widely applied in high‑end precision electronic systems全国科技企....
Key Features
- Advanced metal foil etching technology, ultra‑high precision

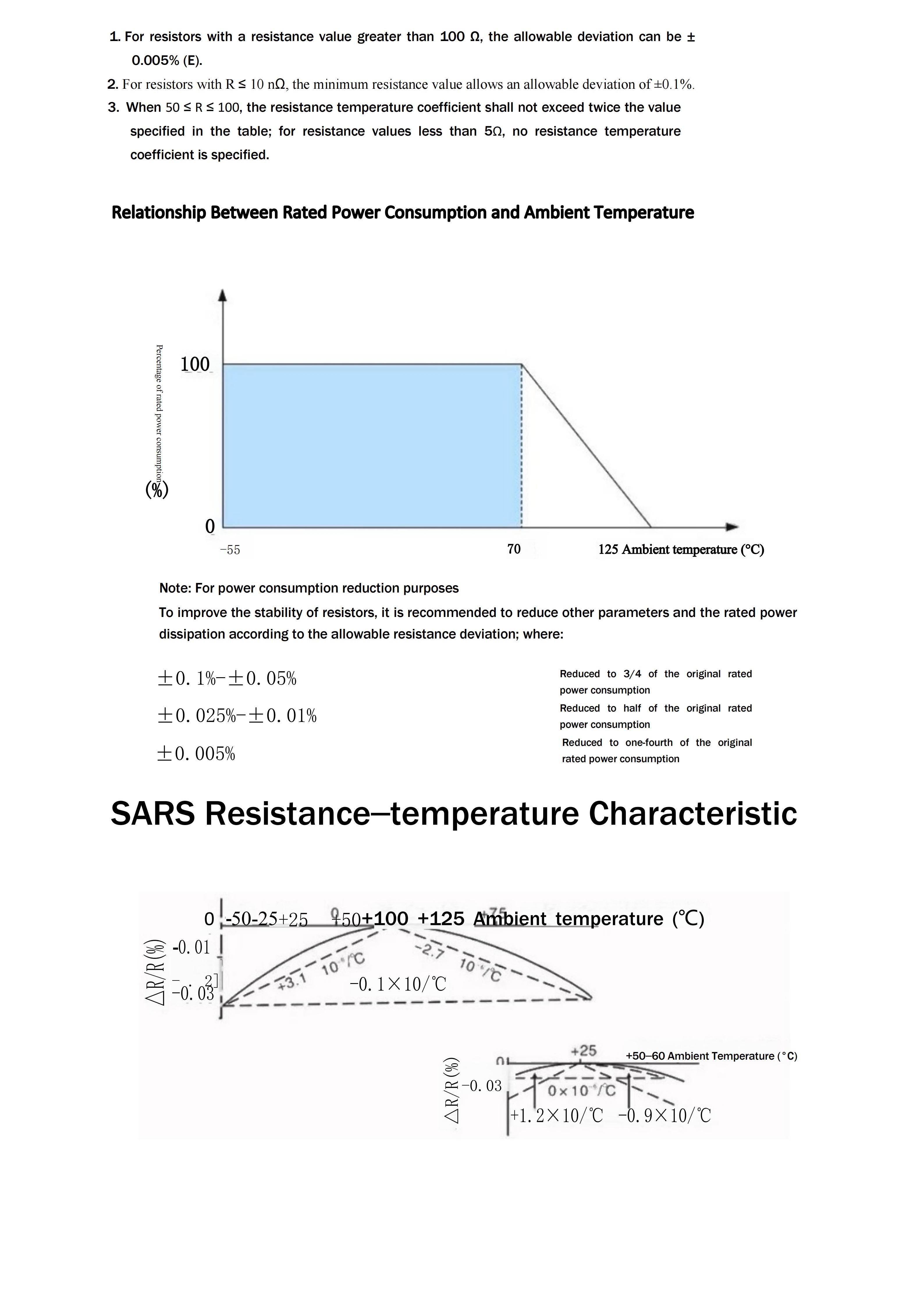

- Ultra‑low temperature coefficient (Low TCR down to 1‑5ppm/℃)

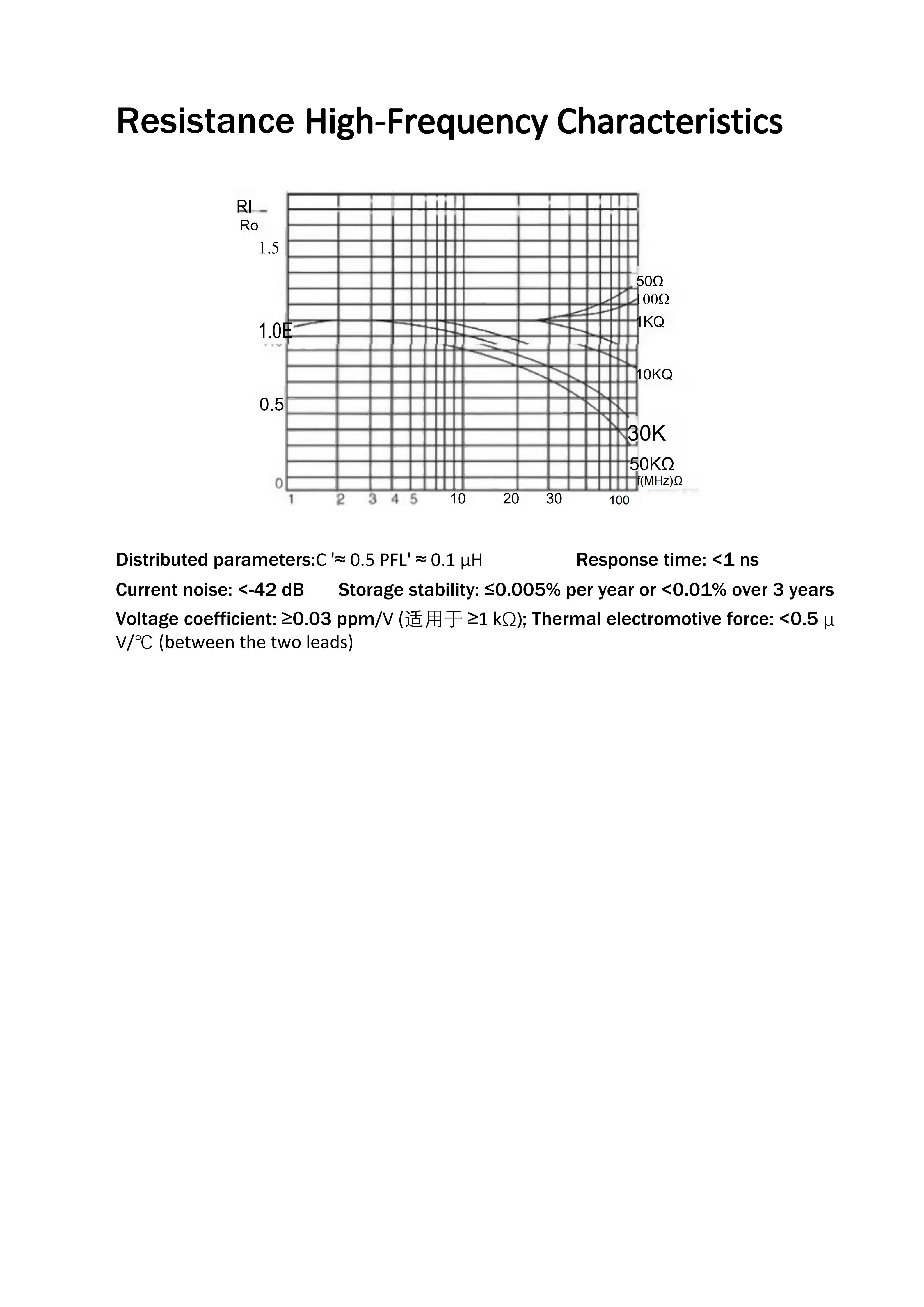

- Near non‑inductive design, excellent high‑frequency response
- Ultra‑tight tolerance: ±0.001%, ±0.005%, ±0.01%, ±0.05%, ±0.1%
- Low thermal EMF, low noise
- Superior long‑term load stability, tiny resistance drift
- Wide operating temperature: -55℃ ~ +155℃
- Custom resistance value, tolerance and power supported
Applications
Precision current sampling circuit, standard resistance reference device, laboratory measuring instrument, aerospace electronic equipment, industrial high‑precision test meters, data acquisition system, medical precision instruments, calibration equipment.
