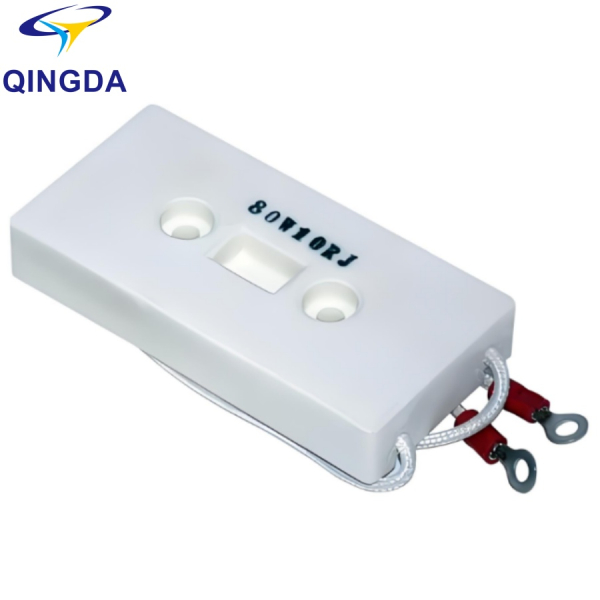

RX27 BKG Tape‑Wound Square Cement Resistor
Manufacturer: Guangdong Qingda Electronic Technology Co., Ltd
Product Overview
RX27 BKG square cement resistor adopts special tape‑wound resistive element, fully encapsulated within square cement housing. Compared with conventional wire‑wound cement resistors, tape‑wound construction delivers lower inductance, superior heat dissipation and stable resistance performance. High‑grade cement encapsulation provides excellent insulation, flame‑retardant property and mechanical protection against shock and vibration.
Guangdong Qingda Electronics supplies full range of RX27 BKG tape‑wound cement resistors, covering multiple power ratings and resistance values. Custom resistance, power and dimension are acceptable for special project requirements. All products comply with RoHS environmental standards.
Key Features
- Tape‑wound resistive element, low inductance characteristic
- Square cement encapsulated housing, flame‑retardant & high insulation
- Excellent heat dissipation capability for continuous power operation
- High mechanical strength, shock‑proof and anti‑vibration
- Stable resistance under long‑time load condition
- Wide power range, multiple resistance tolerances optional
- Suitable for AC and DC working circuits
- RoHS compliant, custom specifications supported
Applications
RX27 BKG tape‑wound square cement resistors are extensively used in: Motor braking, power load testing, current‑limiting circuits, equipment discharge, frequency converter, power supply, industrial control cabinet, household appliances and general‑purpose power electronic equipment.
Typical Specifications
表格
| Item | Parameter |
|---|---|
| Model | RX27 BKG |
| Structure | Tape‑wound, Square Cement Encapsulated |
| Power Rating | 5W‑50W (multiple options) |
| Resistance Range | 0.1Ω ~ 100kΩ |
| Tolerance | ±5%, ±10% |
| Dielectric Strength | High insulation withstand voltage |
| Operating Temperature | ‑40℃ ~ +125℃ |
| Compliance | RoHS |
Note: Avoid exceeding rated power for long‑term operation; keep proper ventilation space for heat dissipation.
