Product Introduction

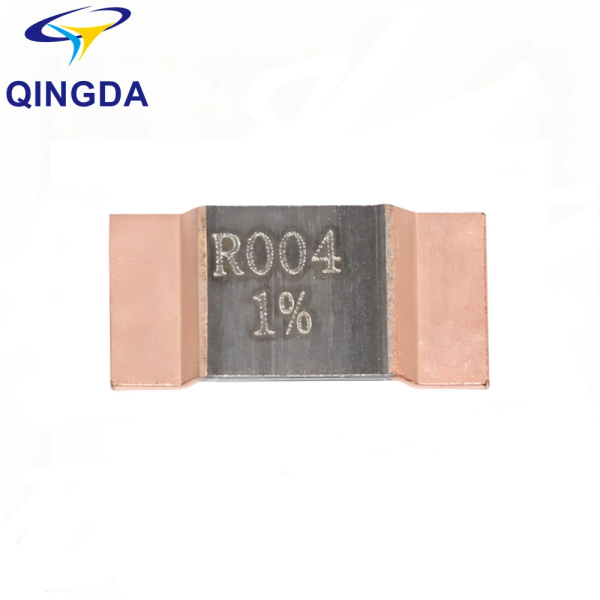

SMT Manganin Alloy Resistor is a surface‑mount current‑sampling resistor constructed with high‑quality manganin alloy. Available in 2512, 3920, 5930 chip packages. Based on manganin material’s excellent low‑temperature‑drift property, this chip resistor generates precise voltage drop when current passes through, to realize accurate DC current detection. It replaces traditional through‑hole shunts for automated SMT assembly, saving PCB space for power equipment.
Key Features
- Manganin alloy core, ultra‑low temperature coefficient
- Low‑ohm resistance, high current carrying capacity
- Multiple chip sizes: 2512, 3920, 5930
- Surface‑mount package, compatible with SMT reflow soldering
- Stable resistance under long‑time heavy‑load operation
- Low self‑heating, small measurement error
- Custom resistance and package specifications supported
Applications
- Battery management system (BMS)
- Inverter, UPS, switching power supply
- Welding equipment, charger module
- DC ammeter & energy‑meter current sampling
- Motor drive, industrial power control
- Over‑current protection circuits
Specifications

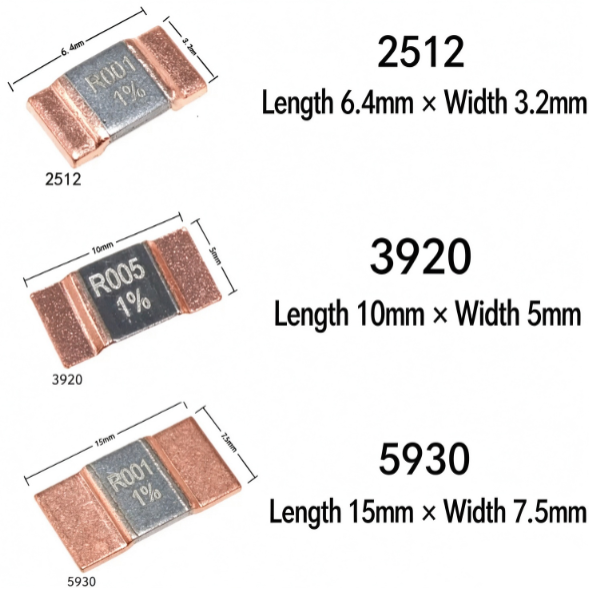

Package sizes: ‑2512: 6.4 mm × 3.2 mm ‑3920: 10 mm × 5 mm ‑5930: 15 mm × 7.5 mm Resistance tolerance: 1%, other tolerance options upon request.
About Us
Guangdong Qingda Electronics specializes in shunt resistors, SMT sampling resistors, wire‑wound resistors, cement resistors and high‑voltage glass‑glaze resistors. We deliver standard and custom resistor solutions for worldwide industrial clients.
