Product Introduction

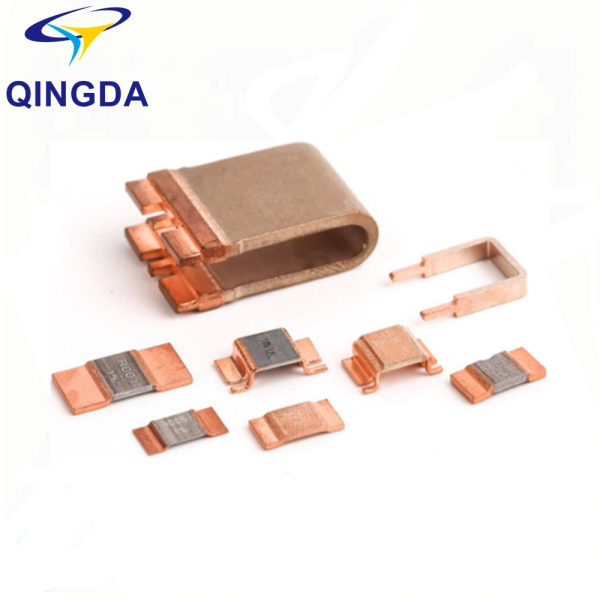

U type shunt resistor is a U-shaped metal alloy current shunt for DC current measurement. It works based on Ohm’s Law: when DC current flows through the shunt, a proportional millivolt voltage drop is generated across both ends, which can be collected for current detection and metering. Made of manganese copper alloy material, this U shape shunt features low temperature drift, stable resistance and excellent long-term stability. Simple U-type structure, easy installation and wiring.
Key Features
- U-shaped structure, convenient mounting and wiring
- Manganin alloy material, low temperature coefficient
- High long-term stability, small resistance drift
- Low ohmic value, high overload capability
- Wide current range options
- Custom size & resistance available
Applications
- DC ammeter, current meter, energy meter
- Battery monitoring system, UPS & power supply
- Charger, welding machine, inverter
- Motor control & power distribution cabinet
- Current sampling and over-current protection

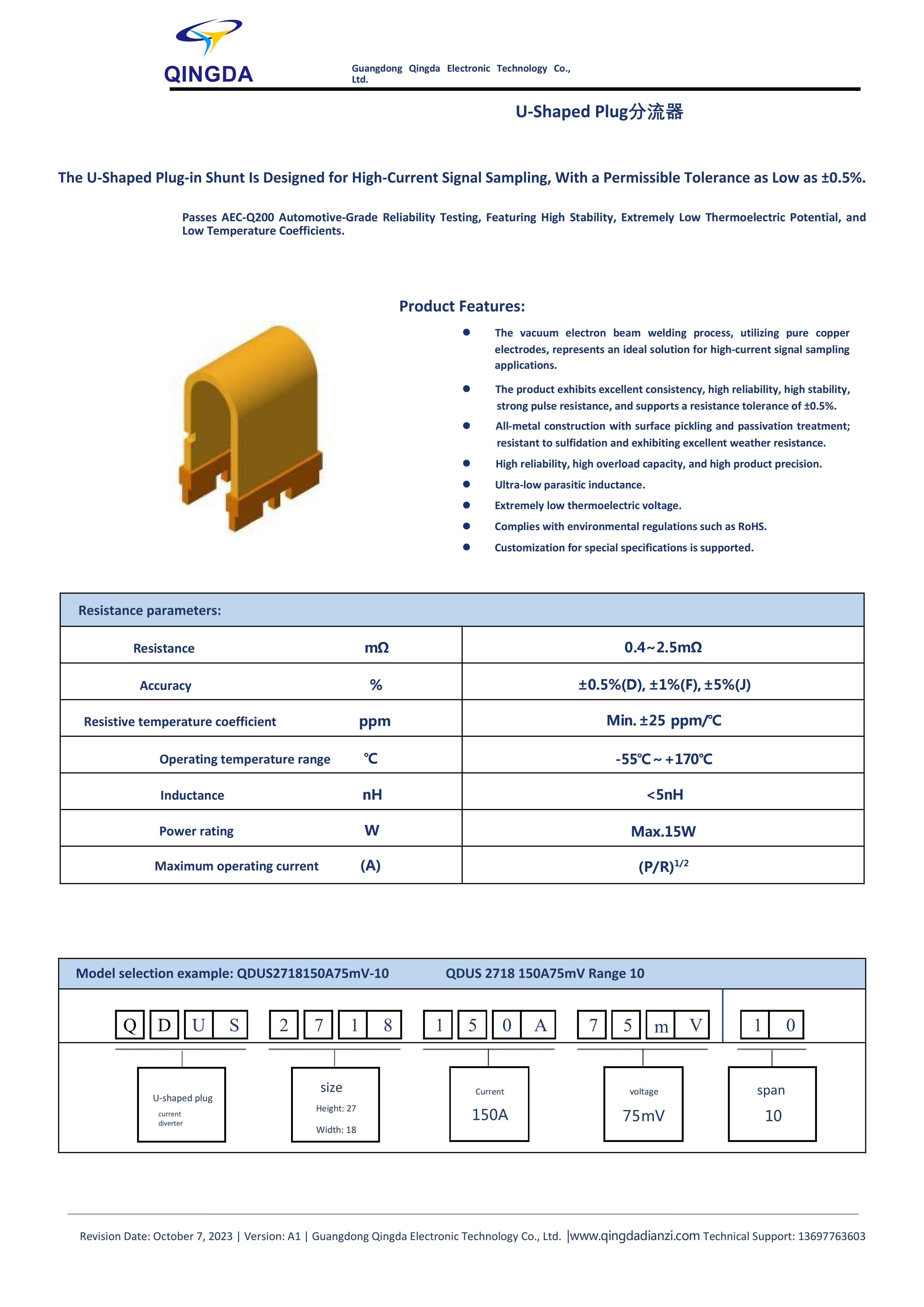

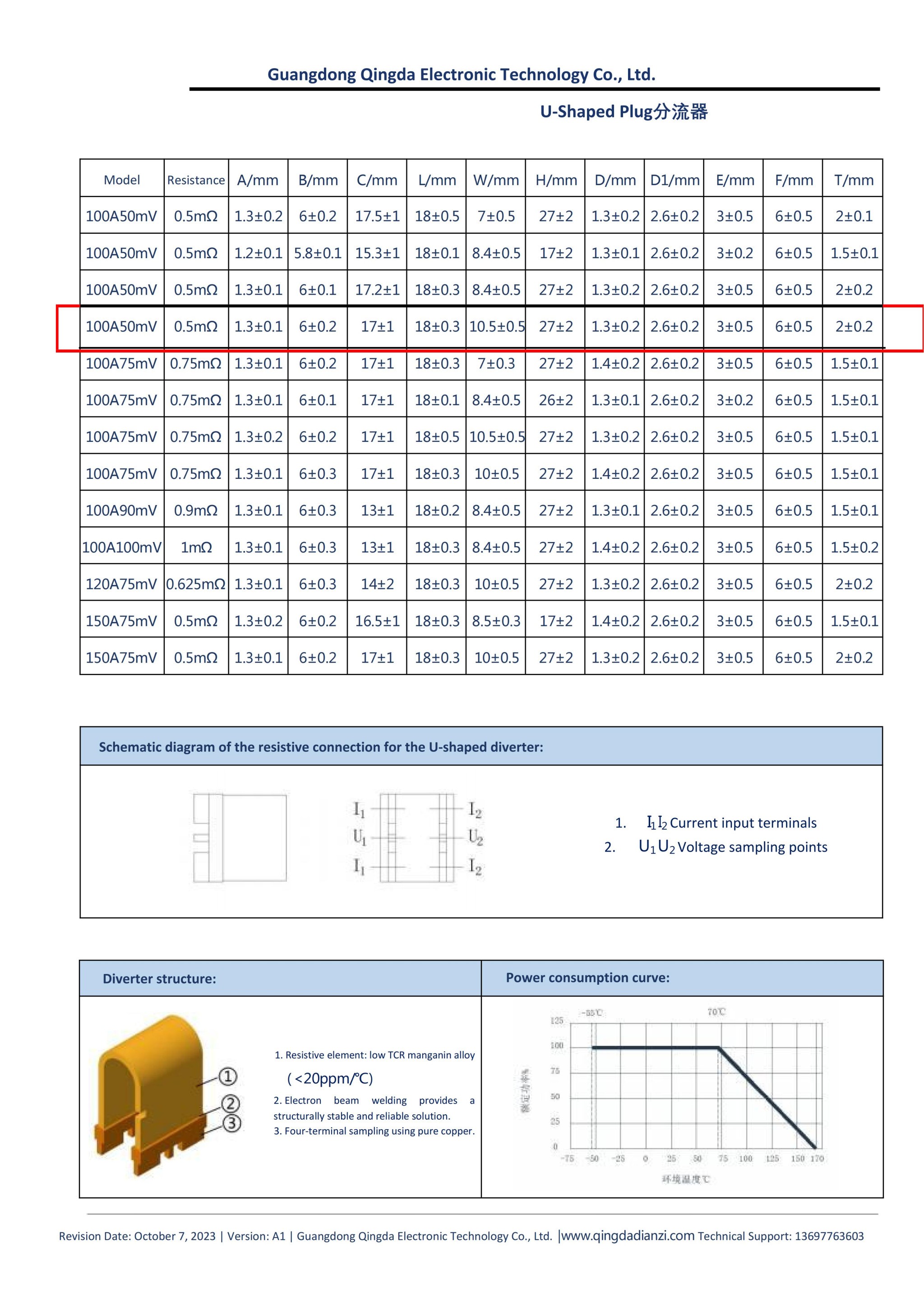

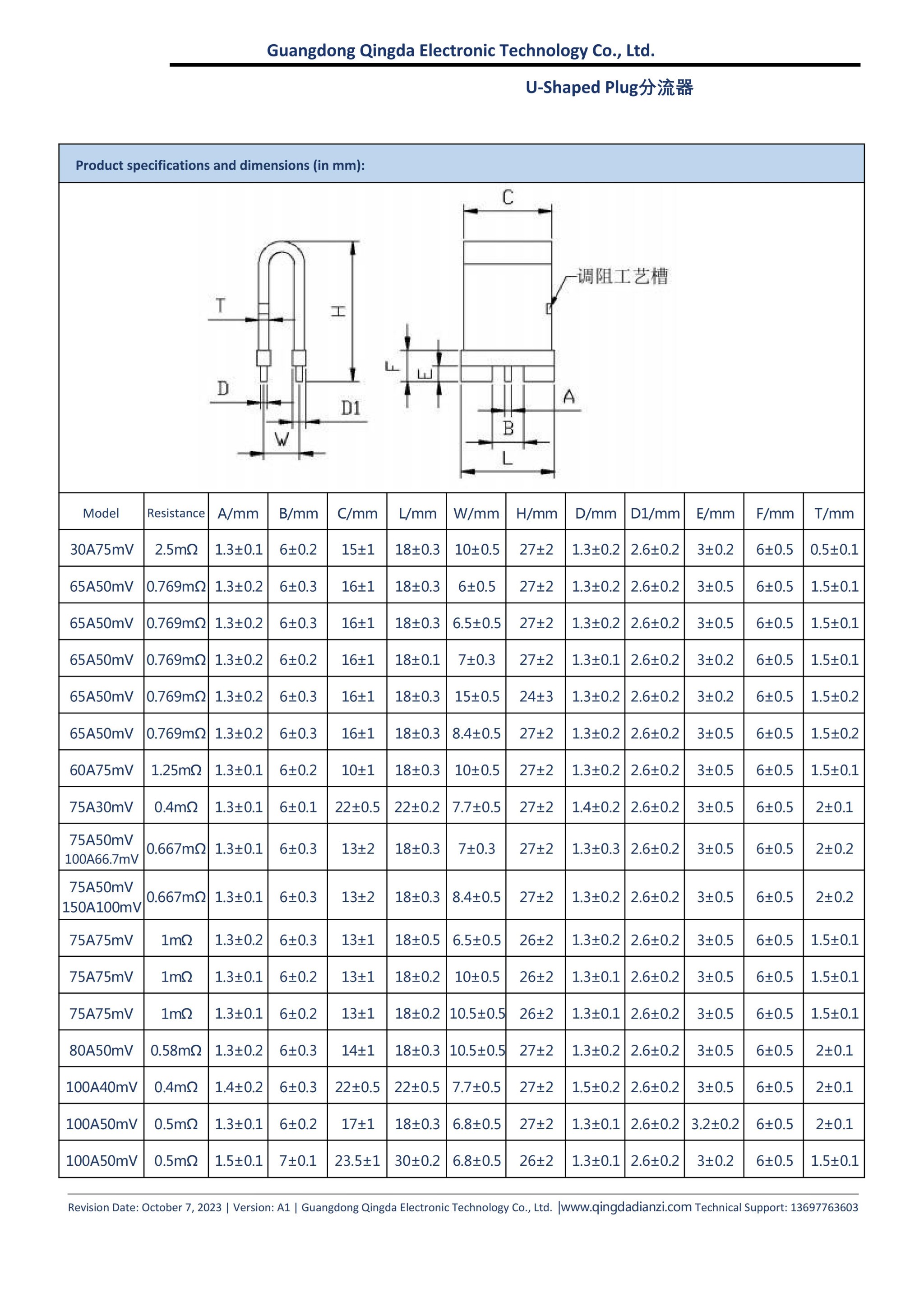

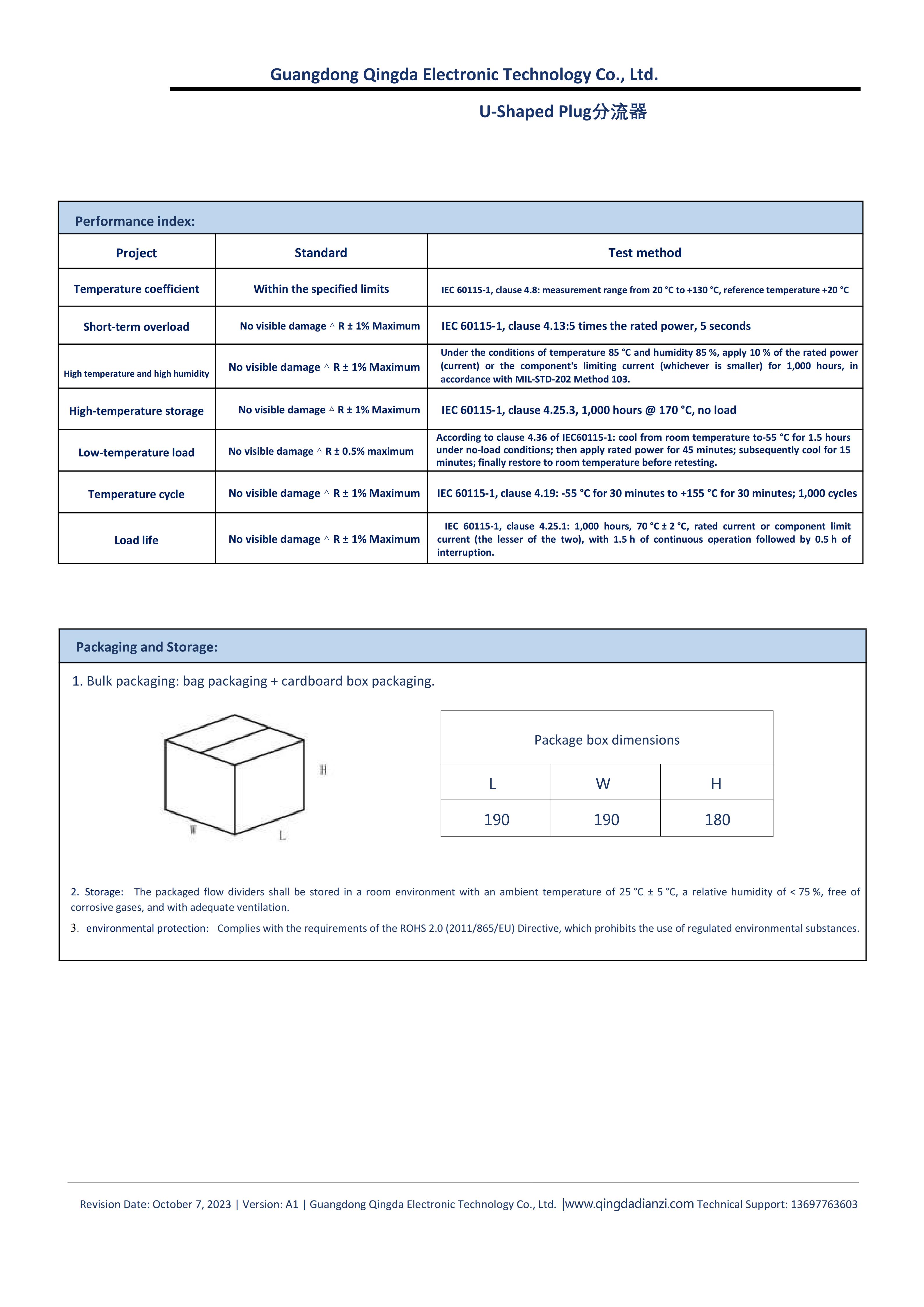

Specifications
Multiple rated current & millivolt output options (common: 50mV, 75mV). Custom U-type dimension and resistance on request.
